Autodesk ACP-01101 exam covers a wide range of topics related to AutoCAD, including creating and modifying objects, working with layouts and viewports, using annotation tools, and managing files and settings. ACP-01101 exam consists of 35 questions and has a time limit of 75 minutes. To pass the exam, candidates must achieve a score of at least 76%.
NEW QUESTION # 18
Exhibit
This image needs to be reproduced in AutoCAD. The wall and plaster lines need to be on separate layers.
After drawing the top wall line on the wall layer, then selecting it, what two options in the Offset (OFFSET) command should be used to offset and place the resulting lines on the plaster layer? (Choose two.)
- A. Select Current
- B. Specify Offset Distance
- C. Select Object
- D. Select Layer
Answer: B,D
Explanation:
Explanation
The offset command is used to create parallel lines, concentric circles, and parallel curves1. To use the offset command, you need to specify the offset distance and select the object that you want to offset23.
NEW QUESTION # 19
In which order should you perform the actions to rotate square (1) to match the angle of square (2).
Move all actions to the answer area and place them in the correct order.
Answer:
Explanation:
Explanation
rotate is a command that rotates selected objects around a base point to an absolute angle. You can specify the base point and the rotation angle by entering values or selecting points. You can also use the reference option to align objects with other objects.
* 1- Start the Rotate command, select the square, and press Enter
* 4- Specify the base point
* 5- Select the Reference option
* 3- Select the lower left corner and the lower right corner as the first and second points of the reference angle
* 2- Enter a value of 0 for the new angle and press Enter
NEW QUESTION # 20

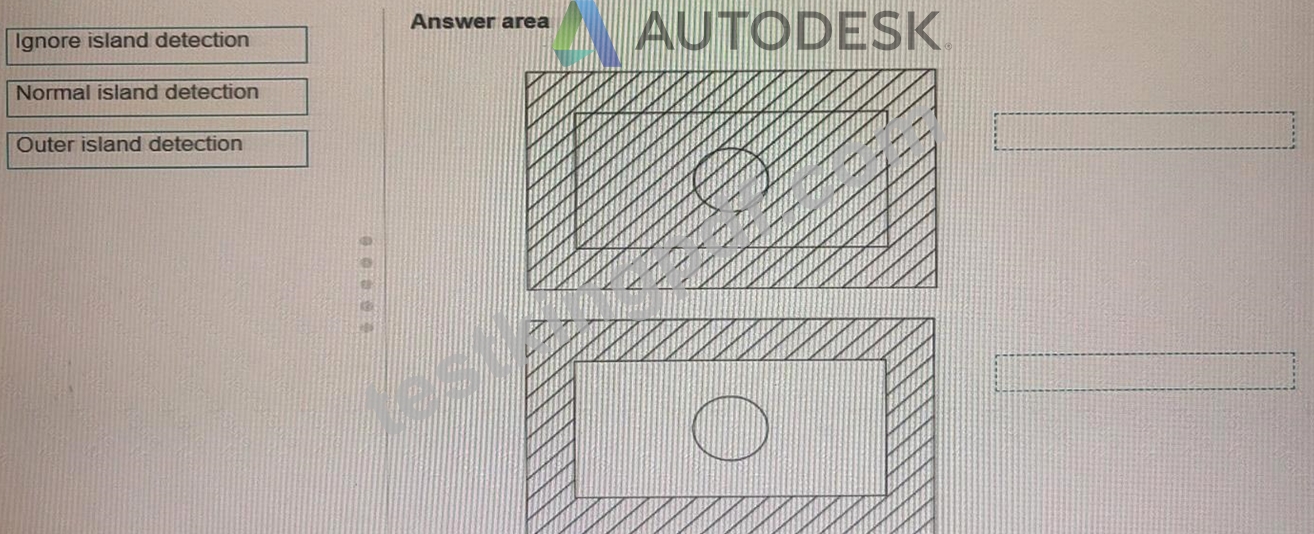

You are using the HATCH command in a drawing. You select the internal point that corresponds with the X as shown in the following exhibit.
Move each setting from the list on the left to the corresponding result on the right.
Answer:
Explanation:
Explanation

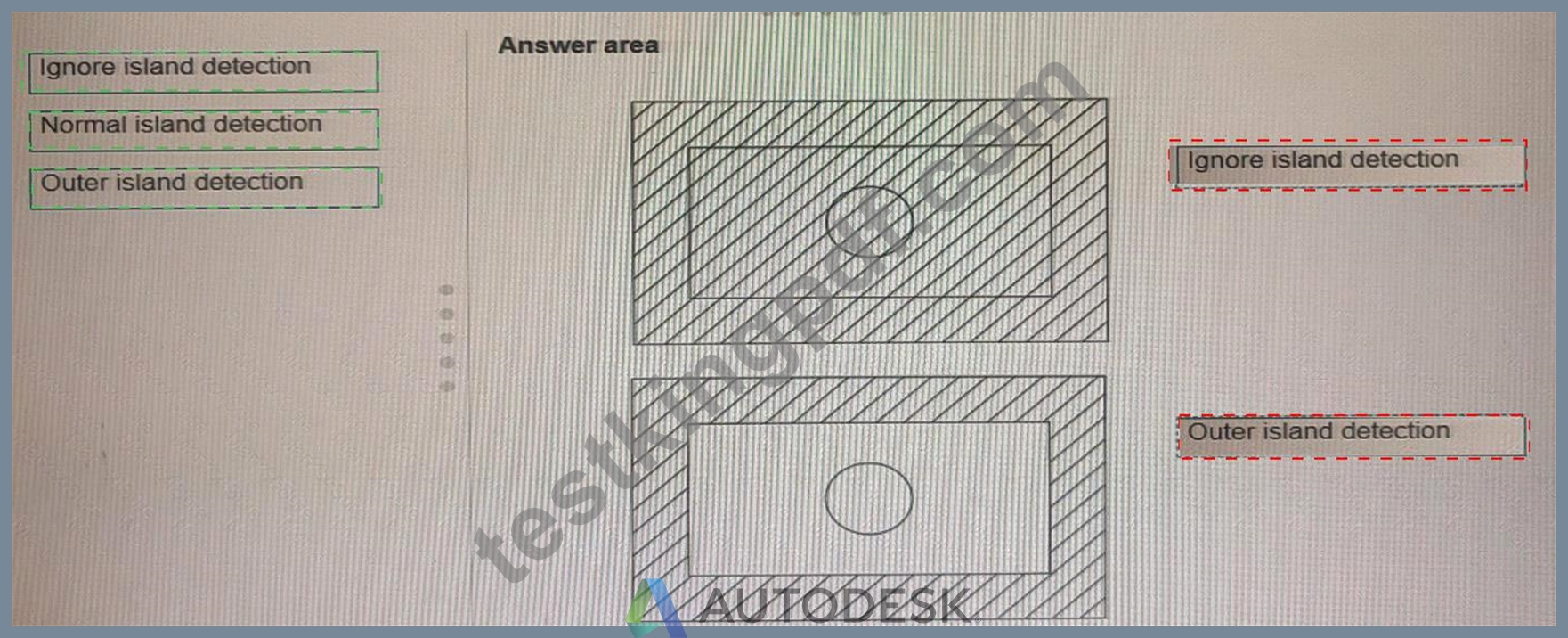

Box 1 = ignore island detection
Box 2 = Outer island detection
https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2021/ENU/AutoCAD
NEW QUESTION # 21
You plan to draw a line at an angle of 6.25 degrees.
Where in the user interface do you configure polar tracking to work at this angle after selecting Polar Tracking On?
Note: Exhibit shown is the AutoCAD interface in Wind. Which the AutoCAD for the Mac version differs in appearance, the correct answers correlate in the options.
Answer:
Explanation:
See the answer below:
Explanation
polar tracking is a feature that allows you to draw lines at specific angles. You can configure polar tracking to work at any angle you want by following these steps:
* Click on the arrow next to the Polar Tracking icon in the Status bar and select Settings.
* In the Drafting Settings dialog box, click on the Polar Tracking tab.
* Under Additional Angles, click on New and enter 6.25 as the angle value. Click OK.
* Make sure that 6.25 is checked in the list of additional angles. Click OK.
Now you can draw a line at an angle of 6.25 degrees by using polar tracking.
NEW QUESTION # 22
You need to create a hatch pattern that looks the same regardless of the viewport scale.
What should you do?
- A. Set the current hatch scale by using the HPSCALE system variable
- B. Create an associative hatch
- C. Set the default hatch pattern
- D. Create an annotative hatch
Answer: D
Explanation:
Explanation
an annotative hatch is a hatch that automatically adjusts its scale and size to match the viewport scale. This means that the hatch pattern will look the same regardless of how you zoom in or out of the viewport.
To create an annotative hatch, you need to:
* Set the annotation scale tool to 1:1
* Create your hatch as usual
* In the properties palette, make the hatch annotative
* Add annotation scales to the hatch as needed
This will create a hatch that displays correctly at different viewport scales.
https://forums.autodesk.com/t5/autocad-forum/annotative-hatch/td-p/2651268
NEW QUESTION # 23
You have two viewports at different viewport scales as shown in the exhibit. The geometry and dimensions were created in model space.
The viewport scales are 1 16 and 1:5. The dimension text height is the same for both viewports in the layout.
Evaluate the graphic and complete the statements by selecting the correct options from the drop-down lists.
Answer:
Explanation:
Explanation
Box 1 = annotative
an annotative dimension style is a dimension style that automatically adjusts the size of dimensions based on the viewport scale. An annotative dimension style has an icon next to its name in the Dimension Style Manager dialog box. The dimension style is annotative because the dimension text height is the same for both viewports in the layout, even though they have different viewport scales1.
Box 2 = associativeThe DIMASSOC is at its default value of 2, therefore the dimensions are associative because they are linked to and update with the measured geometry3.
NEW QUESTION # 24
You want to print a copy of a floor plan with all the interior objects hidden. You already have a polyline drawn around the footprint of the plan.
Complete the statements by selecting the correct option from the drop-down,lists.
Answer:
Explanation:
Explanation
BOX 1 = WIPEOUT command with the Polyline option2.BOX2 = DRAWORDER command23
https://forums.autodesk.com/t5/autocad-forum/polyline-plan-view-boundary-of-point-cloud/td-p/6251860
NEW QUESTION # 25
You start the EXTEND command.
You need to be able to trim several objects quickly without exiting the EXTEND command.
What should you do?
- A. Hold the Shift key while selecting the objects.
- B. Hold the Alt key while selecting the objects.
- C. Hold the Ctrl key while selecting the objects.
- D. Hold the Ctrl+Shift key while selecting the objects.
Answer: A
Explanation:
Explanation
According to the AutoCAD for Design and Drafting documents1, the EXTEND command allows you to extend objects to meet the edges of other objects. To trim objects instead of extending them, you can hold down the Shift key while selecting the objects1. This will invoke the TRIM command within the EXTEND command.
https://autocadprojects.com/trim-and-extend-command/
NEW QUESTION # 26
Which option of the Array command will distribute items along a path at specified intervals?
- A. Associative
- B. Measure Method
- C. Align Items
- D. Divide Method
Answer: B
Explanation:
Explanation
The option of the Array command that will distribute items along a path at specified intervals is Measure Method1. This method allows you to specify a distance between the items along the path
https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2019/ENU/AutoCAD
NEW QUESTION # 27
Refer to the exhibit.
The exhibit shows a set of ornamental garden stairs going up to a walkway as part of a landscaping design.
You need to make sure that the edge of the top step in shown in a different linetype, as shown by the dashed line in the exhibit.
Which prompt in the OFFSET command should you use?
- A. Source
- B. Current
- C. Erase
- D. Through
Answer: B
Explanation:
Explanation
The Current prompt should be used to make sure that the edge of the top step is shown in a different linetype, as shown by the dashed line in the exhibit. This way, you can set a different linetype for your current layer before using the OFFSET command4.
https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2021/ENU/AutoCAD
NEW QUESTION # 28
You have the drawing shown in the exhibit.
You are using the DIM command to preview suitable dimension type objects in the drawing.
Which dimension type will appear when you hover over each object? Select the appropriate dimension type from each of the drop-down lists.
Answer:
Explanation:
* When you hover over the arc (1), you will see a radius dimension type preview.
* When you hover over the circle (2), you will see a diameter dimension type preview.
* When you hover over the horizontal line (3), you will see a horizontal linear dimension type preview.
* When you hover over the angled line (4), you will see an angular dimension type preview.
NEW QUESTION # 29
Select whether each statement is True or False.
Answer:
Explanation:
Explanation
True
1. According to the AutoCAD for Design and Drafting documents1, a polyline is a connected sequence of line segments created as a single object. You can create straight line segments, arc segments, or a combination of the two2341. Therefore, the correct answer is True. A polyline can include both straight line segments and arc segments.
2. False.According to the AutoCAD for Design and Drafting documents1, a spline is a smooth curve that passes through or near a set of fit points, or that is defined by the vertices in a control frame. A spline does not have a constant radius, but rather a local radius at each point on the curve2. Therefore, AutoCAD cannot directly dimension or display a radius of a spline curve23. You can use some workarounds such as exploding the curve to arc segments with the FLATTEN command2, or creating a polyline over the top with arc active3, but these may not be accurate or desirable. Therefore, the correct answer is False. The radius on a spline cannot be found in AutoCAD properties.3. TrueAccording to the AutoCAD for Design and Drafting documents1, a 2D polyline is a connected sequence of line segments created as a single object. You can specify an elevation for a 2D polyline using the Edit Polyline Elevations command2. However, this command will assign the same elevation to all vertices of the polyline2. Therefore, you cannot assign different elevations to different segments or points of a 2D polyline. Therefore, the correct answer is True. You can assign only one elevation to a 2D polyline.
NEW QUESTION # 30
Drawings from different sources have been combined and resulted in duplicate background elements that are slightly offset from each other Some of the layer names match and other layers have an E prefix, indicating that they are existing.
To clean up the drawing, the Overkill (OVERKILL) command is used.
Which two settings will resolve the duplicate background and offsetting issues? (Select 2)
- A. Maintain associative objects
- B. Ignore Color object property
- C. Ignore Layer object property
- D. Tolerance value
- E. Ignore Transparency
Answer: C,D
Explanation:
Explanation
You need to ignore layer object property to remove duplicates that have different layer names but are otherwise identical4. You also need to set a tolerance value that is larger than the offset distance between the objects5.
NEW QUESTION # 31
Refer to the exhibit.
You are working on a drawing. You copy a set of entities and exit the COPY command. You then use the MOVE command on the same set of entities.
Which default option should you use when prompted to select entities?
- A. Spacebar
- B. L (Last)
- C. P (Previous)
- D. A (All)
Answer: C
Explanation:
Explanation
when you use the MOVE command on a set of entities that you have previously copied, you should use B. P (Previous) as the default option when prompted to select entities. This will select the last set of entities that you modified with any command.
https://forums.autodesk.com/t5/autocad-forum/move-previous-command/td-p/3466896
https://www.cadlinecommunity.co.uk/hc/en-us/articles/360002360178-Move-Copy-Rotate-All-in-one-editing-co
NEW QUESTION # 32
Move three applicable commands from the list on the left to the corresponding function on the right.
Commands may be used once or not at all (Select 3)
Answer:
Explanation:
Explanation
Box 1 : Batch plot
One of the topics covered in this course is Plotting Drawings2. In this topic, you can learn how to print multiple sheets or drawings to a plotter, printer, DWF file, or PDF file. The applicable command for this function is Batch plot (PUBLISH)2.
https://www.autodesk.com/certification/learn/course/autocad-drawing-design-drafting-professional Box 2: EtransmitOne of the topics covered in this course is Sharing Drawings2. In this topic, you can learn how to create a package of drawing files and their dependencies. The applicable command for this function is Etransmit (ETRANSMIT)2.
https://www.autodesk.com/certification/learn/course/autocad-drawing-design-drafting-professional Box3: ExportOne of the topics covered in this course is Exporting Drawings2. In this topic, you can learn how to save the objects in a current drawing to a different file format, such as SAT, STL, etc. The applicable command for this function is Export (EXPORT)2.
https://www-int.autodesk.com/certification/learning-pathways/autocad-design-drafting
NEW QUESTION # 33
You have the drawing shown in the exhibit.
You need to place the polygon and the rectangle on the same layer as the circle.
Which command should you use to complete the task in the least number of steps?
- A. Make Current (LAYMCUR)
- B. Match Properties
- C. Copy
- D. ByLayer
Answer: B
Explanation:
Explanation
match properties is a command that allows you to apply the properties of one object to another object. You can use this command to change the layer of an object by selecting an object on the desired layer as a source.
To use this command, you can either:
* Click on the Match Properties icon in the Properties panel of the Home tab.
* Type MATCHPROP at the command prompt and press Enter.
Then, you can follow these steps:
* Select an object on the same layer as the circle as a source object and press Enter.
* Select the polygon and the rectangle as destination objects and press Enter.
Now you have placed the polygon and the rectangle on the same layer as the circle.
NEW QUESTION # 34
A site plan was recently modified to relocate a building to a new location While relocating the building, only the hatch location of the building was moved by mistake as shown in the exhibit.
Evaluate the graphic and answer each question by selecting the correct options from the drop-down lists.
Answer:
Explanation:
Explanation
Box 1 = Turn on Associative Hatching
Box 2 = use the Recreate Boundary option from Hatch Editor
https://knowledge.autodesk.com/support/autocad/troubleshooting/caas/sfdcarticles/sfdcarticles/Recreating-hatch-
https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2018/ENU/AutoCAD
NEW QUESTION # 35
Your company asks you to research alternative editable CAD formats to export to for non-AutoCAD users.
Which three alternative CAD file formats can be exported from AutoCAD? (Select 3)
- A. RVT
- B. IAM
- C. BMP
- D. DWF
- E. STL
Answer: B,D,E
Explanation:
Explanation
https://knowledge.autodesk.com/support/revit/learn-explore/caas/CloudHelp/cloudhelp/2022/ENU/Revit-Docum
NEW QUESTION # 36
Exhibit
The viewport scales in the title block shown are field value as extracted from the properties of each viewport.
When using the Insert Field command to edit the text value and generate the viewport scale, which object property should you use, if the default scale list is being used?
- A. Display locked
- B. Visual style
- C. Object name
- D. Standard scale
Answer: D
Explanation:
Explanation
The object property that you should use when using the Insert Field command to generate the viewport scale, if the default scale list is being used, is the "Standard scale".
The "Standard scale" property is used to specify the standard scale factor for the viewports. It represents a value in the format of 1:n, where n is the scale factor. For example, if you set the standard scale to 1:50, the viewport will display objects at a scale of 50 units per drawing unit.
To use this property in the Insert Field command, you can select "Object" in the "Field category" dropdown and "Standard scale" from the "Field names" dropdown. This will insert a field code that will automatically update the viewport scale based on the properties of the viewport.
NEW QUESTION # 37
You have three multileaders as shown in exhibit 1. (Refer to the exhibit 1 tab.)
You need to change the display of the multileaders to match the multileaders in exhibit. (Refer to the exhibit 2 tab.)
Which command should you use?
- A. Collect Leader
- B. Remove Leader
- C. Align Leader
- D. Add Leader
Answer: A
Explanation:
Explanation
The command that you should use is B. Collect Leader1. The collect leader option groups multiple leaders into one multileader object with a common landing line1. This option is useful when you want to create a single label or callout for multiple objects2.
To use this option, you need to select the MLEADER command and then select Collect Leader from the Options menu. Then you can select two or more existing multileaders that have similar properties and press Enter. The selected multileaders will be collected into one multileader object with a common landing line1.
NEW QUESTION # 38
......
